Health Cloud APIs Explained: REST, Bulk, and FHIR Integration Use Cases

Introduction

Health Cloud APIs power Salesforce Health Cloud’s position at the intersection of healthcare delivery and enterprise CRM, requiring robust integration capabilities to connect with Electronic Health Records (EHRs), Health Information Exchanges (HIEs), medical devices, and third-party healthcare applications. The platform exposes three primary API paradigms—REST API, Bulk API, and FHIR API—each architected for distinct integration patterns, data volumes, and healthcare interoperability requirements.

This analysis examines the technical architecture, practical use cases, and decision frameworks for selecting the appropriate API approach in Health Cloud implementations. We’ll move beyond surface-level definitions to explore the engineering trade-offs, compliance implications, and real-world constraints that healthcare IT professionals face when designing integration architectures.

Understanding the Health Cloud API Landscape

Before diving into individual APIs, it’s critical to understand that Health Cloud extends Salesforce’s standard API capabilities with healthcare-specific objects, relationships, and FHIR-compliant resources. Your API selection directly impacts:

The fundamental principle: Choose the API that matches your integration pattern, not the one you’re most comfortable with.

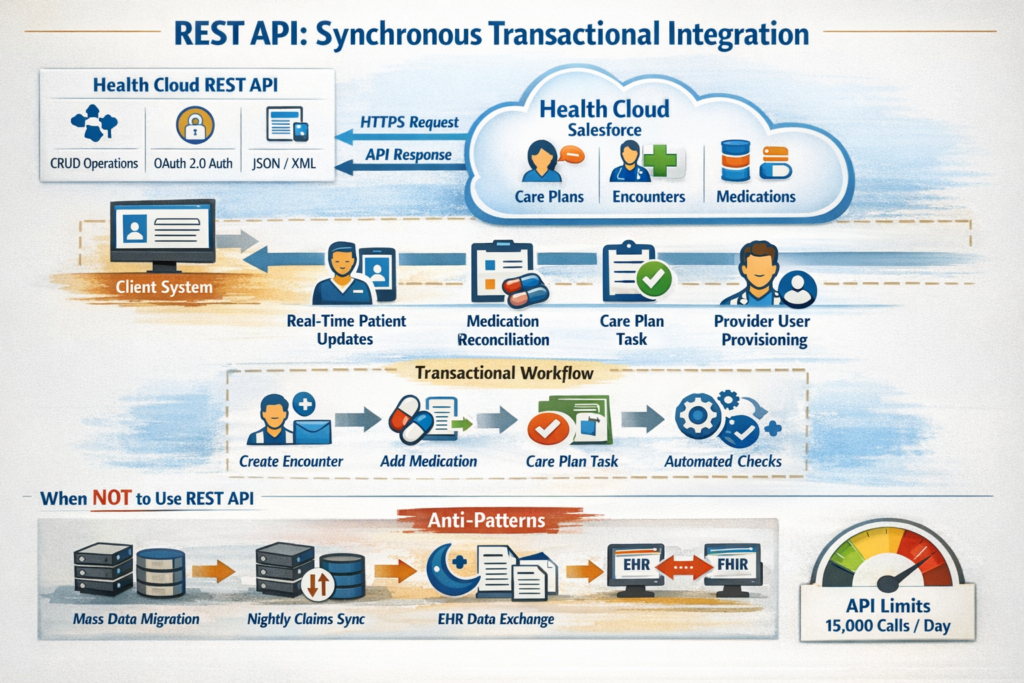

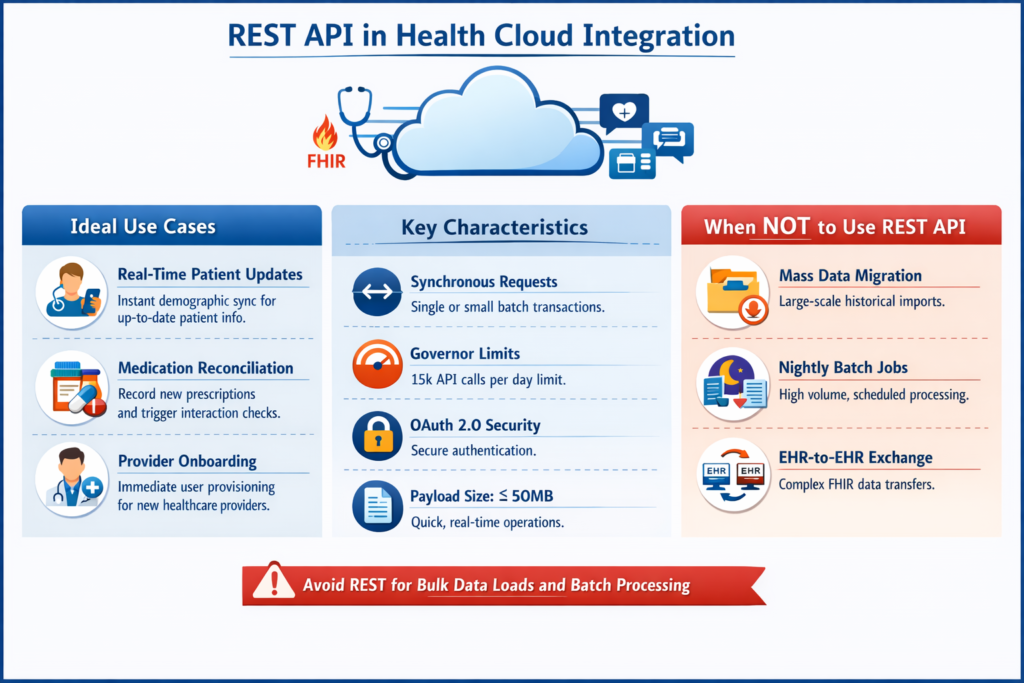

REST API: Synchronous Transactional Integration

Health Cloud APIs

Technical Architecture

Health Cloud’s REST API extends Salesforce’s standard REST API with healthcare-specific endpoints and objects. It operates over HTTPS using JSON or XML payloads, supporting CRUD operations on both standard and custom objects, including Health Cloud data models like Care Plans, Care Plan Problems, Clinical Encounters, and Medications.

Key Characteristics:

Healthcare-Specific Use Cases

1. Real-Time Patient Demographic Updates

Scenario: A patient updates their contact information at a specialty clinic, which must immediately sync to Health Cloud to ensure care coordinators have current details.

Implementation Pattern:

textPOST /services/data/v58.0/sobjects/Account
Authorization: Bearer {access_token}
Content-Type: application/json

{
  "RecordTypeId": "012...",
  "PersonEmail": "patient@example.com",
  "PersonMobilePhone": "+1-555-0123",
  "HealthCloudGA__SourceSystem__c": "EpicMyChart",
  "HealthCloudGA__SourceSystemId__c": "E12345"
}

Why REST API:

2. Medication Reconciliation During Clinical Encounters

Scenario: During a telehealth visit, a provider prescribes a new medication. The prescription must be recorded in Health Cloud and trigger automated interactions checking for drug-drug interactions.

Architecture Consideration:
REST API enables chaining related records in a single transaction:

Why REST API:

3. Provider Portal User Provisioning

Scenario: New providers joining a care network need immediate access to patient panels, requiring Health Cloud user creation, permission set assignment, and contact record linkage.

Why REST API:

When NOT to Use REST API

Anti-Pattern 1: Historical Data Migration
Migrating 500,000 patient records from a legacy EHR to Health Cloud via REST API will consume API limits rapidly and execute inefficiently. A single-threaded approach would require ~33,333 requests (at 15 records per batch), exhausting daily limits and taking weeks.

Anti-Pattern 2: Nightly Claims Data Synchronization
Processing 50,000 insurance claims nightly from a claims management system strains REST API limits and creates unnecessary overhead. The synchronous nature provides no benefit for batch data flows.

Anti-Pattern 3: EHR-to-EHR Data Exchange
Using REST API as an intermediary for FHIR-compliant data exchange between EHR systems bypasses interoperability standards and creates unnecessary transformation logic.

Architectural Decision Factors

FactorUse REST APIConsider Alternative
Record Volume<5,000 records/day>10,000 records/day
Latency Requirement<3 seconds>30 seconds acceptable
User InteractionSynchronous user actionBackground process
Data ComplexityRelated records, triggersFlat data structures
API Call BudgetAmple daily limitApproaching limit

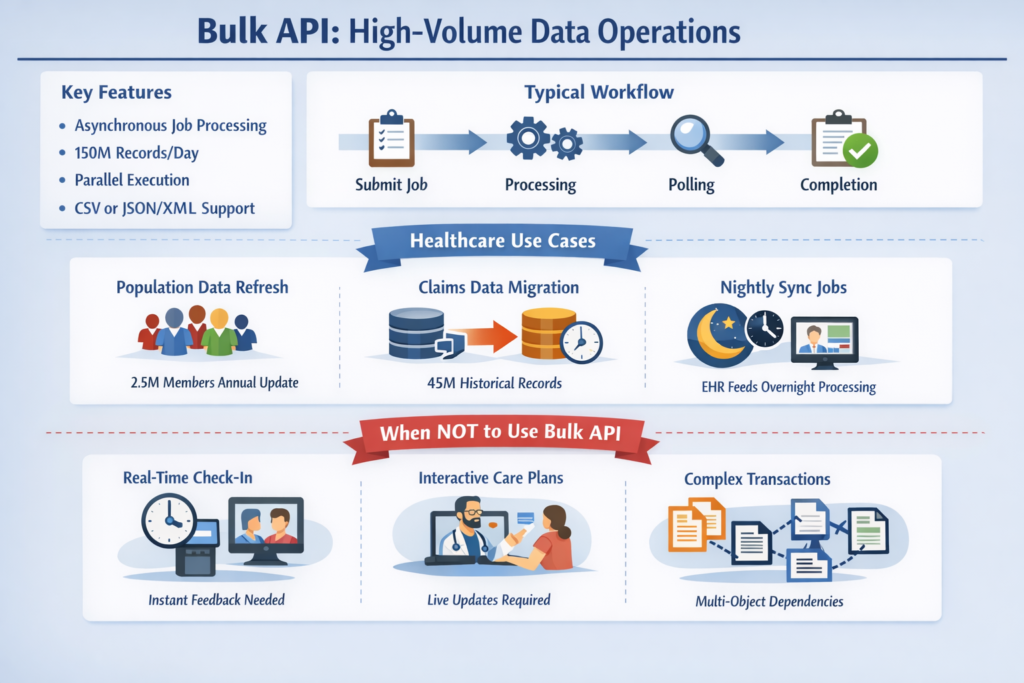

Bulk API: High-Volume Asynchronous Data Operations

Technical Architecture

Bulk API 2.0 (the current version) is purpose-built for processing large datasets asynchronously, optimized for inserting, updating, upserting, or deleting millions of records with minimal API call consumption.

Key Characteristics:

Healthcare-Specific Use Cases

1. Annual Patient Population Health Data Refresh

Scenario: A health plan loads the complete membership roster (2.5 million members) into Health Cloud annually for care gap analysis and population health management.

Implementation Pattern:

textPOST /services/data/v58.0/jobs/ingest
Content-Type: application/json

{
  "object": "Account",
  "contentType": "CSV",
  "operation": "upsert",
  "externalIdFieldName": "HealthCloudGA__SourceSystemId__c",
  "lineEnding": "LF"
}

# Follow-up with CSV upload:
PUT /services/data/v58.0/jobs/ingest/{jobId}/batches
Content-Type: text/csv

HealthCloudGA__SourceSystemId__c,FirstName,LastName,PersonBirthdate,...
PLAN001,John,Smith,1965-03-15,...

Why Bulk API:

2. Historical Claims Data Migration

Scenario: Migrating 10 years of historical claims data (45 million records) from a legacy system to Health Cloud for longitudinal analytics.

Architecture Consideration:
Bulk API enables staged migration strategy:

Each phase runs as separate Bulk API jobs with external ID-based relationships, maintaining referential integrity without complex transaction management.

Why Bulk API:

3. Nightly Clinical Data Synchronization

Scenario: A regional health system syncs overnight clinical data feeds from multiple EHRs (patient demographics, encounters, diagnoses, procedures) into a unified Health Cloud instance.

Implementation Strategy:
Use Bulk API with scheduled batch jobs:

textDaily 2:00 AM: Load encounter data (avg. 25,000 records)
Daily 2:30 AM: Load diagnosis codes (avg. 75,000 records)
Daily 3:00 AM: Load procedure codes (avg. 50,000 records)
Daily 3:30 AM: Run validation and data quality flows

Why Bulk API:

When NOT to Use Bulk API

Anti-Pattern 1: Real-Time Patient Check-In
A patient arrives at a clinic and checks in via a kiosk. Using Bulk API to create the encounter record creates unacceptable latency (minutes vs. seconds) and prevents immediate appointment confirmation.

Anti-Pattern 2: Interactive Care Plan Updates
A care manager updates a patient’s care plan during a video consultation. Bulk API’s asynchronous nature prevents real-time feedback and validation, degrading user experience.

Anti-Pattern 3: Complex Multi-Object Transactions
Creating a Clinical Encounter with 15 related medication statements, 8 diagnoses, and 5 care team members requires transactional consistency. Bulk API’s asynchronous, batch-oriented processing cannot guarantee atomic commits across related objects.

Architectural Decision Factors

FactorUse Bulk APIConsider Alternative
Record Volume>10,000 records<1,000 records
Latency RequirementMinutes to hours acceptableReal-time required
FrequencyScheduled batch windowsEvent-driven triggers
Error HandlingRecord-level isolation acceptableAtomic transaction required
ComplexityFlat or simple relationshipsComplex multi-object graphs

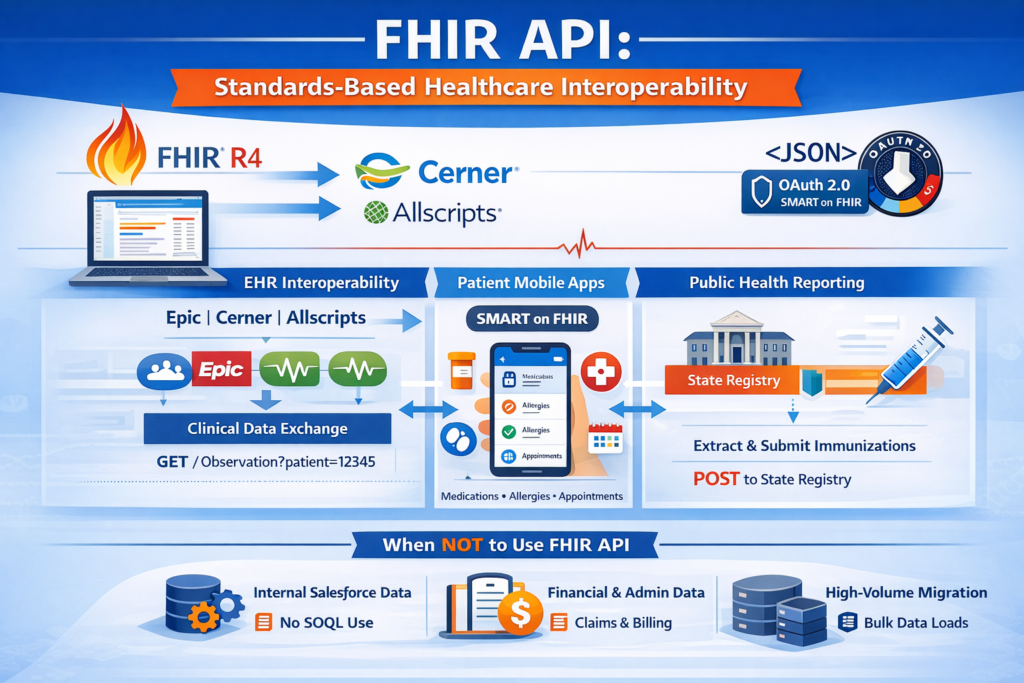

FHIR API: Standards-Based Healthcare Interoperability

Technical Architecture

Health Cloud’s FHIR API implements the HL7 Fast Healthcare Interoperability Resources (FHIR) standard, exposing Health Cloud data as FHIR resources (Patient, Observation, Condition, MedicationRequest, etc.) and supporting RESTful interactions defined by the FHIR specification.

Key Characteristics:

Healthcare-Specific Use Cases

1. EHR Interoperability for Care Coordination

Scenario: A Health Cloud-based care coordination platform needs to retrieve patient clinical data from multiple EHR systems (Epic, Cerner, Allscripts) for comprehensive care planning.

Implementation Pattern:

text# Query patient clinical observations from external EHR via FHIR
GET /services/data/v58.0/fhir/r4/Observation?patient=Patient/12345&category=vital-signs
Authorization: Bearer {access_token}
Accept: application/fhir+json

# Response includes vital signs in standardized FHIR format
{
  "resourceType": "Bundle",
  "type": "searchset",
  "entry": [
    {
      "resource": {
        "resourceType": "Observation",
        "code": {
          "coding": [{"system": "http://loinc.org", "code": "85354-9"}]
        },
        "valueQuantity": {
          "value": 120,
          "unit": "mm[Hg]",
          "system": "http://unitsofmeasure.org"
        }
      }
    }
  ]
}

Why FHIR API:

2. Patient-Facing Mobile Applications

Scenario: A health system develops a mobile app allowing patients to view medications, allergies, and upcoming appointments stored in Health Cloud.

Architecture Consideration:
Implement SMART on FHIR authorization flow:

  1. App redirects patient to Health Cloud authorization endpoint
  2. Patient authenticates and grants access to specific resources
  3. App receives scoped access token (e.g., patient/MedicationRequest.read)
  4. App queries FHIR API with patient-specific token

Why FHIR API:

3. Public Health Reporting and Registry Submissions

Scenario: A health system must submit immunization data from Health Cloud to state public health registries for compliance with reporting mandates.

Implementation Strategy:

text# Extract immunization records as FHIR Immunization resources
GET /services/data/v58.0/fhir/r4/Immunization?patient=Patient/12345&date=ge2024-01-01

# Transform to state-specific format and submit to registry
POST https://state-registry.gov/fhir/Immunization
Content-Type: application/fhir+json

Why FHIR API:

When NOT to Use FHIR API

Anti-Pattern 1: Internal Salesforce Data Operations
Using FHIR API to query Health Cloud data for internal Salesforce processes (e.g., Flow automation, Apex batch jobs) adds unnecessary transformation overhead. Standard REST/SOQL is more efficient for intra-Salesforce operations.

Anti-Pattern 2: Financial/Administrative Data
Attempting to map insurance claims, billing codes, or administrative workflows to FHIR resources creates semantic mismatches. FHIR focuses on clinical data; financial data integration should use REST/Bulk APIs with custom objects or ANSI X12 standards.

Anti-Pattern 3: High-Volume Batch Data Migration
Migrating millions of historical records via FHIR API is inefficient compared to Bulk API. FHIR’s resource-oriented model and rich metadata increase payload sizes and processing overhead.

Architectural Decision Factors

FactorUse FHIR APIConsider Alternative
Data TypeClinical/patient dataFinancial/administrative
InteroperabilityEHR/HIE integrationInternal Salesforce ops
Standards ComplianceRequired (ONC, CMS)Not mandated
Partner EcosystemFHIR-enabled vendorsProprietary systems
Patient AccessPatient-facing appsProvider-only workflows

Comparative Analysis: When to Use Which API

DimensionREST APIBulk APIFHIR API
Primary Use CaseReal-time transactionsHigh-volume batchHealthcare interoperability
Typical Volume1-5,000 records/day10,000+ records/batchVaries by use case
Latency<3 secondsMinutes to hours<5 seconds (read), varies (write)
Data ModelSalesforce objectsSalesforce objectsFHIR resources
ComplexityMedium (API structure)Low (CSV-based)High (FHIR specification)
Standards AlignmentProprietaryProprietaryHL7 FHIR R4
API Call Consumption1 call per operation1 call per job + polling1 call per resource interaction
Best for DevelopersSalesforce-native appsData migration teamsHealthcare interop specialists
AuthenticationOAuth 2.0, SAMLOAuth 2.0OAuth 2.0 + SMART on FHIR
Error HandlingImmediate responseFailed record CSVFHIR OperationOutcome
Transaction SupportYes (multi-object)No (record-level)Limited (bundle transactions)

Security and Compliance Considerations

HIPAA Security Rule Alignment

All three APIs must operate within a HIPAA-compliant technical architecture:

Encryption in Transit:

Encryption at Rest:

Access Controls:

Audit Logging:

Interoperability Mandates

21st Century Cures Act (Patient Access):

CMS Interoperability and Patient Access Rule:

ONC Certification (for EHR Vendors):
While Health Cloud isn’t typically ONC-certified itself, integrations with certified EHRs must maintain certification:

Data Governance for Each API Type

REST API:

Bulk API:

FHIR API:

Architectural Patterns and Anti-Patterns

Pattern 1: Hybrid API Architecture

Scenario: Regional health system integrating multiple data sources with varying requirements.

Implementation:

Rationale: Each integration uses the API optimized for its specific data pattern, volume, and latency requirements.

Pattern 2: API Gateway with Protocol Translation

Scenario: Legacy systems without FHIR support require integration with Health Cloud’s FHIR resources.

Implementation:

text[Legacy System] --> [API Gateway: HL7 v2.x/CDA Input]
                    --> [Transform to FHIR]
                    --> [Health Cloud FHIR API]

Rationale: Centralized transformation logic maintains standards compliance while supporting legacy systems during migration periods.

Anti-Pattern 1: FHIR API as Internal Data Layer

Problem: Development team uses FHIR API for all Health Cloud data access, including Apex classes and Lightning components.

Why This Fails:

Correct Approach: Use FHIR API only for external interoperability; use SOQL/DML for internal operations.

Anti-Pattern 2: Bulk API for Event-Driven Updates

Problem: Care manager actions (e.g., closing care gaps) queued to a Bulk API job that runs every 15 minutes.

Why This Fails:

Correct Approach: Use REST API for user-driven transactions; reserve Bulk API for scheduled batch processes.

Performance Optimization Strategies

REST API Optimization

Composite API Requests:
Reduce API calls by bundling operations:

JSONPOST /services/data/v58.0/composite/sobjects

{
  "allOrNone": true,
  "records": [
    {"attributes": {"type": "Account"}, "FirstName": "John"},
    {"attributes": {"type": "Contact"}, "LastName": "Smith"}
  ]
}

Single API call creates multiple records with transaction consistency.

Field-Level Projection:
Query only necessary fields to reduce payload size and processing time:

textGET /services/data/v58.0/sobjects/Account/001.../select=Id,Name,HealthCloudGA__SourceSystemId__c

Conditional Updates:
Use If-Modified-Since headers to avoid redundant updates:

textPATCH /services/data/v58.0/sobjects/Account/001...
If-Match: "previous-etag-value"

Bulk API Optimization

Optimal Batch Sizing:

External ID Strategy:
Use indexed external ID fields for upsert operations:

textHealthCloudGA__SourceSystemId__c (External ID, Unique, Indexed)

Dramatically improves upsert performance vs. matching on email or name.

Incremental Loading:
Track high-water marks (e.g., last modified timestamp) to load only changed records:

SQL-- Source system query
SELECT * FROM patients WHERE modified_date > '2024-01-15 00:00:00'

FHIR API Optimization

Search Parameter Optimization:
Use indexed search parameters:

text# Efficient: Uses indexed patient reference
GET /Observation?patient=Patient/12345&date=ge2024-01-01

# Inefficient: Non-indexed general search
GET /Observation?_content=diabetes

Pagination Strategy:
Implement _count parameter for large result sets:

textGET /Patient?_count=50&_offset=0

Retrieve manageable pages rather than entire result sets.

Resource Bundling:
Use FHIR transaction bundles to create related resources:

JSONPOST /services/data/v58.0/fhir/r4/

{
  "resourceType": "Bundle",
  "type": "transaction",
  "entry": [
    {"resource": {"resourceType": "Patient", ...}, "request": {"method": "POST", "url": "Patient"}},
    {"resource": {"resourceType": "Observation", ...}, "request": {"method": "POST", "url": "Observation"}}
  ]
}

Monitoring and Troubleshooting

REST API Monitoring

Key Metrics:

Tools:

Bulk API Monitoring

Key Metrics:

Tools:

FHIR API Monitoring

Key Metrics:

Tools:

Conclusion: Decision Framework

When architecting Health Cloud integrations, apply this decision tree:

1. Is this healthcare interoperability with external systems?

2. What is the data volume?

3. What is the latency requirement?

4. Are there compliance/interoperability mandates?

5. What is the integration pattern?

The maturity of healthcare interoperability standards and the regulatory push toward FHIR-based data exchange increasingly favor FHIR API for external integrations. However, the reality of Health Cloud implementations often requires a pragmatic blend of all three API types, each applied to the integration scenarios where it provides the greatest technical and regulatory value.

About RizeX Labs

At RizeX Labs, we specialize in delivering advanced Salesforce solutions tailored for healthcare organizations, including deep expertise in Salesforce Health Cloud integrations.

Our team combines hands-on implementation experience with strong architectural knowledge to help healthcare providers, payers, and health-tech platforms build scalable, compliant, and high-performance integrations.

We enable organizations to move from fragmented systems to unified, API-driven healthcare ecosystems that improve patient outcomes, operational efficiency, and regulatory compliance.

Internal Links:

External Links:

Talk to an expert

Get answers to your questions and discover how GradX can help you transform your

Career with modern cloud technologies.

Get a call
Chat with Expert

Courses

Company

Resources

Contact

  • Phone - 8767401160
  • Email - support@gradxacademy.in
  • Address - 3rd Floor, RizeX Labs, Narhe Rd, above Ruby Star Gym, Manaji Nagar, Dhayari Phata, Pune, Maharashtra 411041

Request info or schedule a demo

Contact Us
RizeX Labs Logo Horizontal

India's #1 Cloud Learning Platform

Instagram Youtube Linkedin Whatsapp
